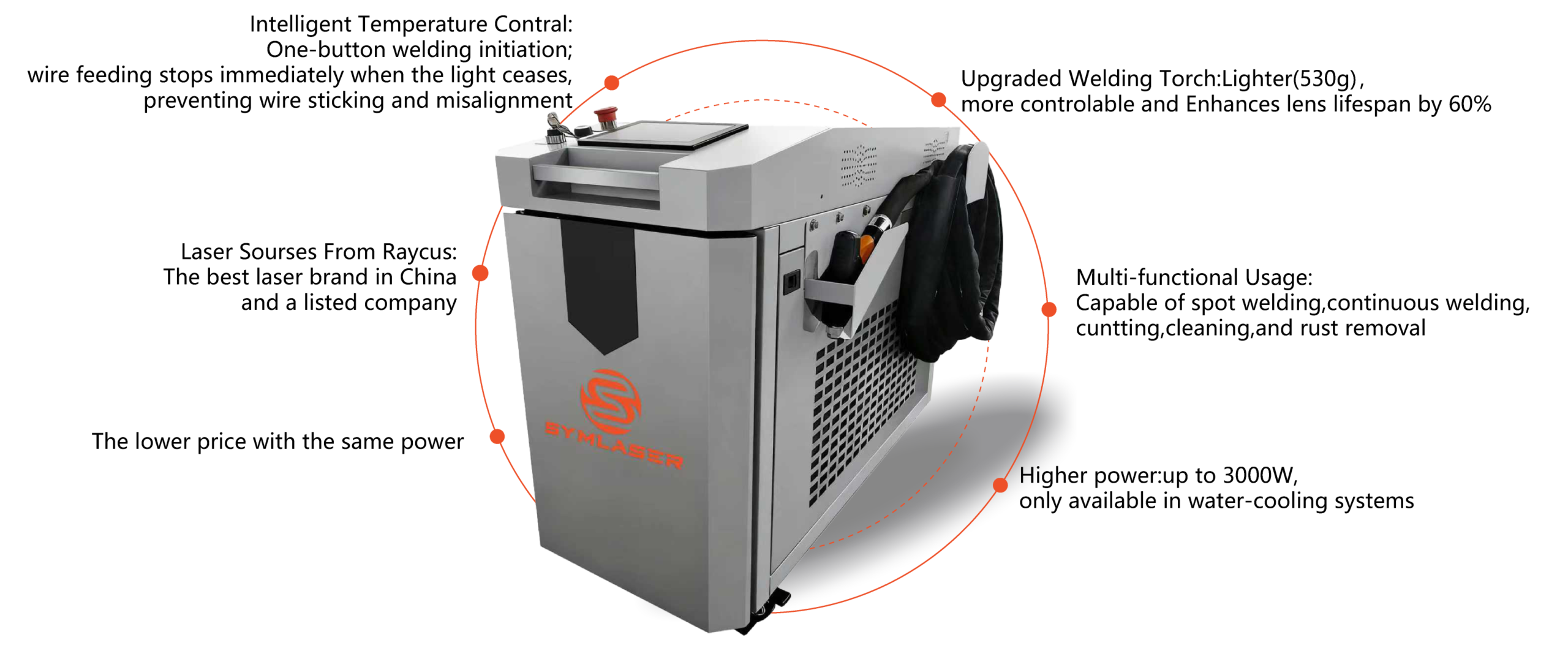

Water-cooling Handheld Laser Welding Machine
High-power, Efficient heat dissipation enables prolonged high-power operation
|
|
Output Power |
1500W |
2000W |
3000W |
|---|---|---|---|---|
|
|
Functions |
welding,cutting,rust removal |
||
|
|
Overall weight |
100KG |
110KG |
120KG |
|
|
Torch weight |
0.53KG |
||
|
|
Dimensions |
1040*450*800 |
1040*450*800 |
1040*450*800 |
|
|
Cooling Method |
Water-cooling |
||
|
|
Operating ambient temperature range |
0°C~40°C |
||
|
|
Length of optical fiber cable |
10m±0.5m |
||
|
|
Operating voltage |
single phase 220V,50/60HZ |
single phase 380V,50/60HZ |
|
|
Welding Thickness |
Stainless steel（mm) |
4 |
5 |
6.5 |
|
Galvanized sheet（mm) |
4 |
5 |
6.5 |
|
|
Mild steel/iron（mm) |
4 |
5 |
6.5 |
|
|
Aluminum（mm) |
3 |
3.5 |
4.5 |
|
|
Brass（mm) |
2 |
2.5 |
3.5 |
|
|
Copper |
1 |
1.5 |
2.5 |
|

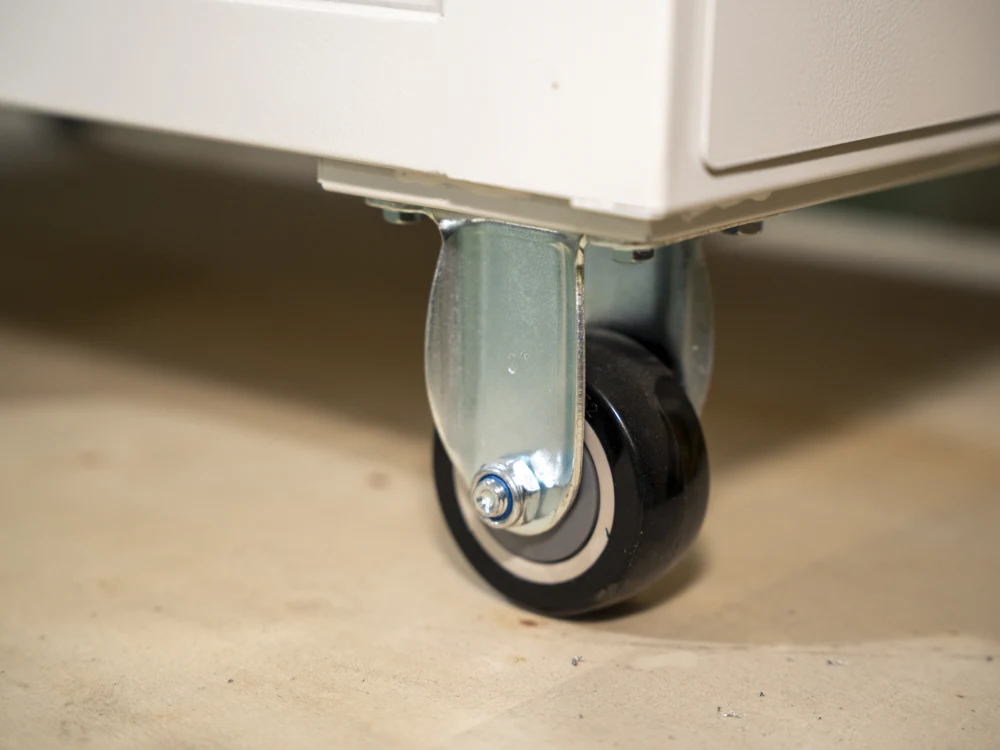

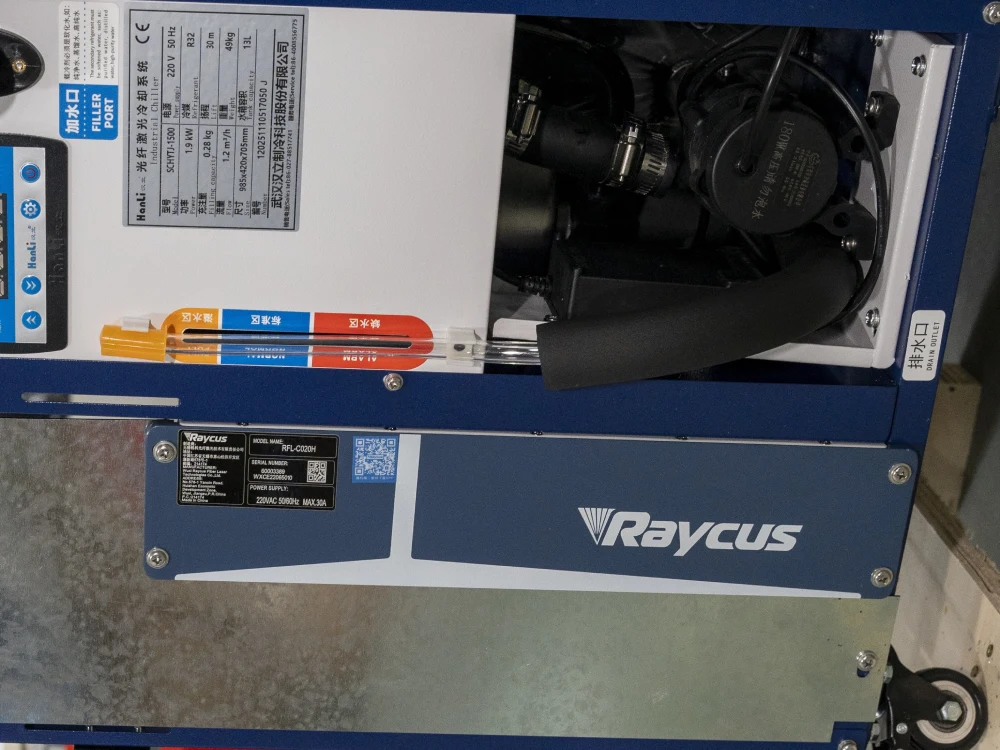

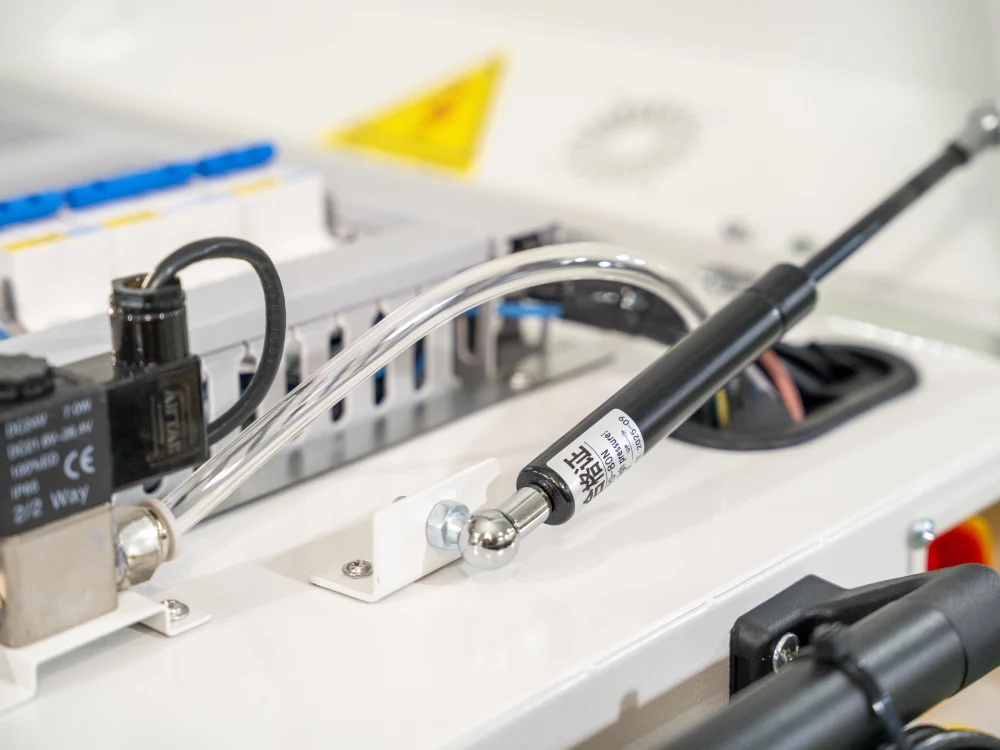

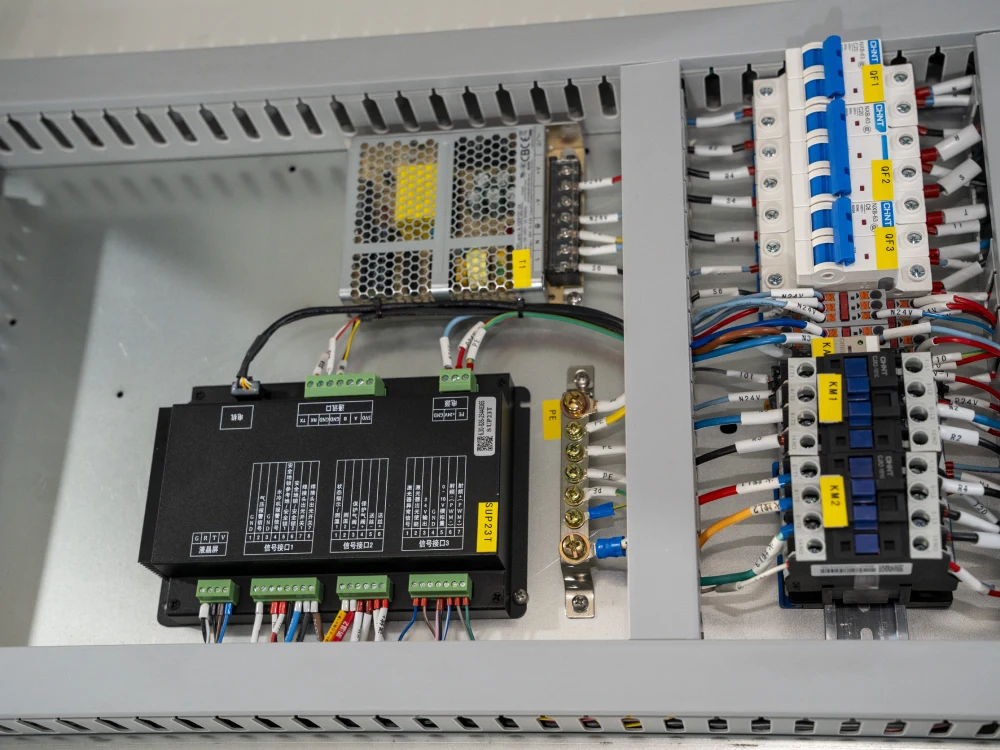

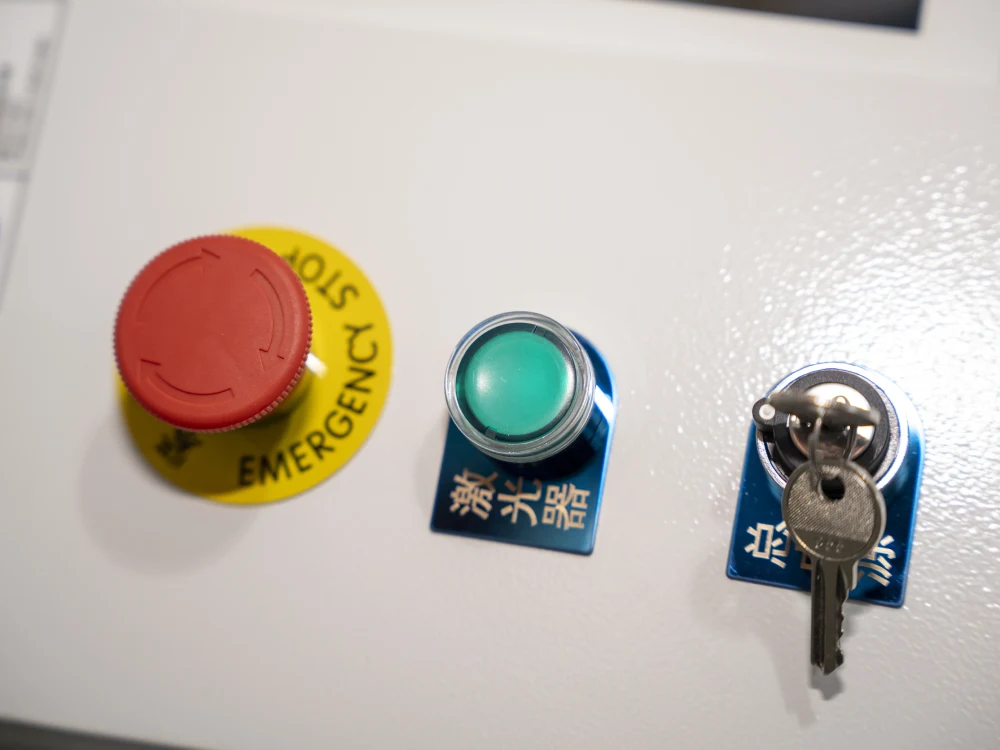

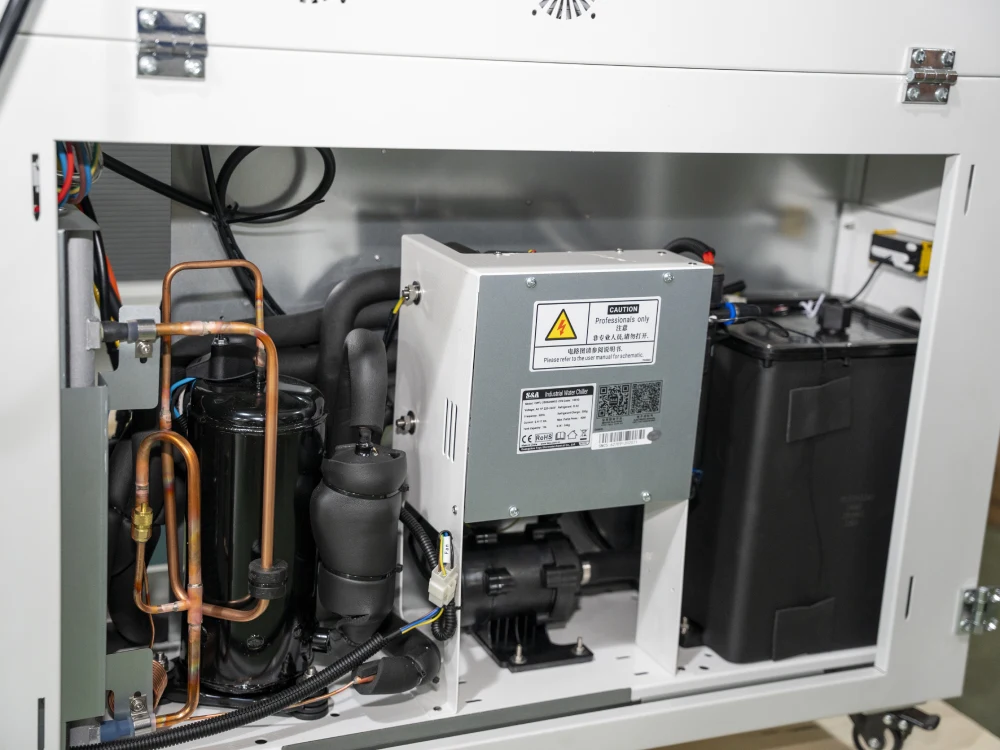

Equipment Detail Images
